XB5AG41C0 | Schneider Electric
Key switch, 2 switching positions, unlit, latching, 1 Form A (N/O), waistband round, black, front ring gray/black, 2 x 90°, mounting Ø 22.5 mm, XB5AG41C0
Unit Price (€ / pc.)
39.5913 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
39.59 € *
Price list
Quantity
Price per unit*
1 pcs.
39.5913 €
3 pcs.
37.9967 €
5 pcs.
36.5449 €
*incl. VAT plus shipping costs
Subject to prior sale

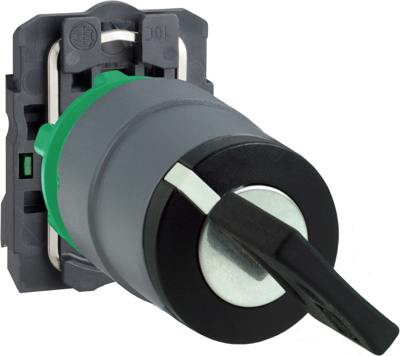

Selector switch, XB5AG41C0, Schneider Electric
This key selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 22 mm diameter cut-outs and connected with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2 switching positions | |
| Installation height | 42 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Contact function | latching | |
| Protection class | IP66/IP67 | |
| Installation diameter | 22.5 mm | |
| Front ring colour | gray/black | |
| can be illuminated | No | |
| Contact material | silver alloy | |
| Connection | screw connection | |
| Collar shape of the front frame | round | |
| Product type | key switch | |
| Installation depth | 96 mm | |
| Actuator colour | black | |
| Rotation angle | 2 x 90° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
