XB5AG03C0 | Schneider Electric

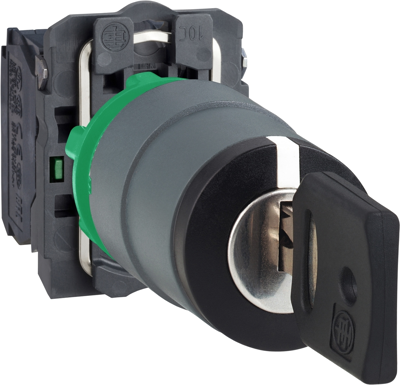

Key switch, 3 switching positions, unlit, latching, 2 Form A (N/O), waistband round, black, front ring gray/black, 3 x 45°, mounting Ø 22.5 mm, XB5AG03C0
Unit Price (€ / pc.)
47.9689 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
47.97 € *
Price list
Quantity
Price per unit*
1 pcs.
47.9689 €
3 pcs.
46.0530 €
5 pcs.
44.2799 €
*incl. VAT plus shipping costs
Subject to prior sale
Selector switch, XB5AG03C0, Schneider Electric
This key selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 22 mm diameter cut-outs and connected with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Connection | screw connection | |
| Contact function | latching | |
| Rotation angle | 3 x 45° | |
| Installation height | 42 mm | |
| Latching switching function | 2 Form A (N/O) | |
| can be illuminated | No | |
| Contact material | silver alloy | |
| Protection class | IP66/IP67 | |
| Front ring colour | gray/black | |
| Installation depth | 96 mm | |
| Version | 3 switching positions | |
| Installation diameter | 22.5 mm | |
| Product type | key switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
