XB5AD53 | Schneider Electric
Toggle switch, unlit, groping, 2 Form A (N/O), waistband round, black, front ring black, 3 x 45°, mounting Ø 22 mm, XB5AD53
Unit Price (€ / pc.)
22.9908 € *
Available in 3 Days: 56 pcs. - if ordered today
Total Price:
22.99 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9908 €
5 pcs.
22.3720 €
*incl. VAT plus shipping costs
Subject to prior sale

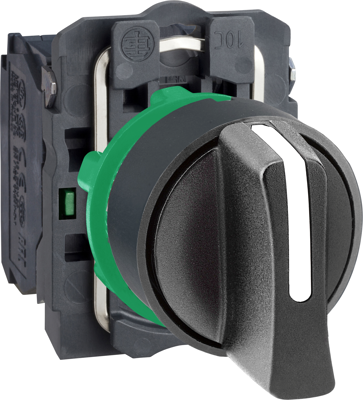

Selector switch, XB5AD53, Schneider Electric
This Harmony XB5, modular black selector switch has 3 positions, operates with a spring-return-to-center mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | groping | |
| Latching switching function | 2 Form A (N/O) | |
| Collar shape of the front frame | round | |
| Product type | toggle switch | |
| Front ring colour | black | |
| Rotation angle | 3 x 45° | |
| Protection class | IP67 | |
| Actuator colour | black | |
| can be illuminated | No | |
| Connection | screw connection | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
