XB5AD415 | Schneider Electric

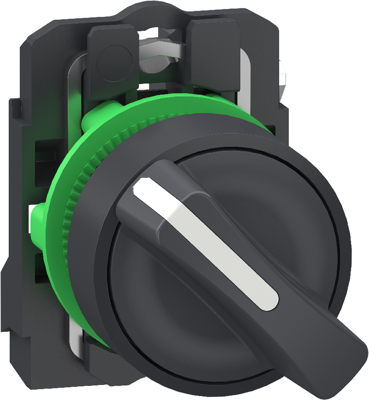

Toggle switch, 2 positions, unlit, groping, 1 Form A (N/O), waistband round, black, front ring gray, 90°, mounting Ø 22.5 mm, XB5AD415
Unit Price (€ / pc.)
18.3498 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.35 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3498 €
3 pcs.
17.5287 €
5 pcs.
16.7790 €
10 pcs.
15.8746 €
*incl. VAT plus shipping costs
Subject to prior sale
Selector switch, XB5AD415, Schneider Electric
Selector switch, Harmony XB5, plastic, black, 22mm, 2 positions, spring return from right to left, 1 NO, compact push in.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | push-in | |
| Actuator colour | black | |
| Latching switching function | 1 Form A (N/O) | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Collar shape of the front frame | round | |
| Front ring colour | gray | |
| Version | 2 positions | |
| Contact function | groping | |
| Product type | toggle switch | |
| Rotation angle | 90° | |
| can be illuminated | No | |
| Installation diameter | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
