XB4BD535 | Schneider Electric

Toggle switch, 3 positions, unlit, latching, 2 Form A (N/O), waistband round, black, front ring metallized, 45°, mounting Ø 22.5 mm, XB4BD535

Order No.: 27L5777
EAN: 3606486341643
MPN:
XB4BD535
Series: Harmony XB4

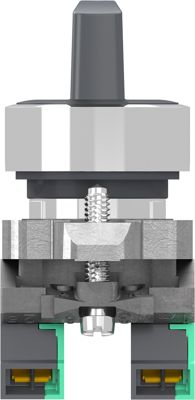

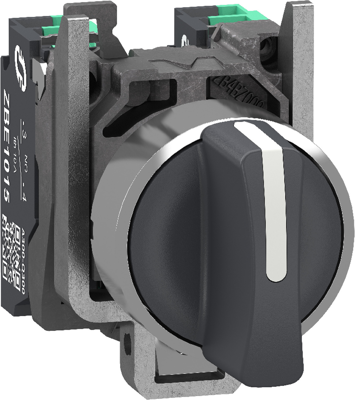

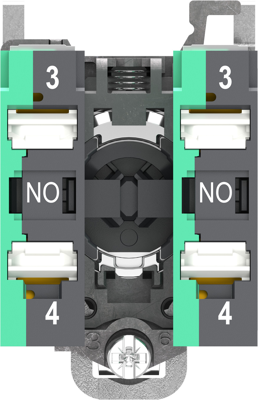

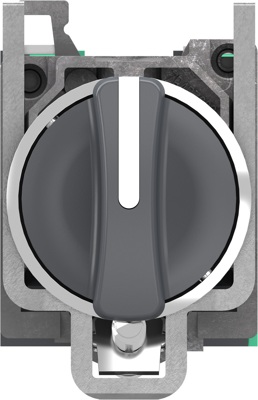

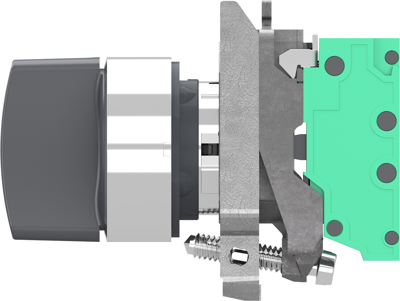

XB4BD535 Schneider Electric Actuators, Signal Elements and Front Elements Image 1
XB4BD535 Schneider Electric Actuators, Signal Elements and Front Elements Image 2
XB4BD535 Schneider Electric Actuators, Signal Elements and Front Elements Image 3
XB4BD535 Schneider Electric Actuators, Signal Elements and Front Elements Image 4
XB4BD535 Schneider Electric Actuators, Signal Elements and Front Elements Image 5
Image may differ
Unit Price (€ / pc.)
26.0848 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
26.08 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0848 €
3 pcs.
24.9543 €
5 pcs.
23.5858 €
10 pcs.
22.3601 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, XB4BD535, Schneider Electric

Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring return to center, 2 NO, compact push in terminals.

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • A wide choice of contact blocks for general purposes or specific applications
  • Excellent mechanical connection with operator head
  • A large set of accessories to customize your panels
Technical specifications
Filter Property Value
Product type toggle switch
can be illuminated No
Front ring colour metallized
Protection class IP66/IP67/IP69/IP69K
Latching switching function 2 Form A (N/O)
Version 3 positions
Rotation angle 45°
Collar shape of the front frame round
Connection push-in
Actuator colour black
Installation diameter 22.5 mm
Contact function latching
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
