XB4BD53 | Schneider Electric

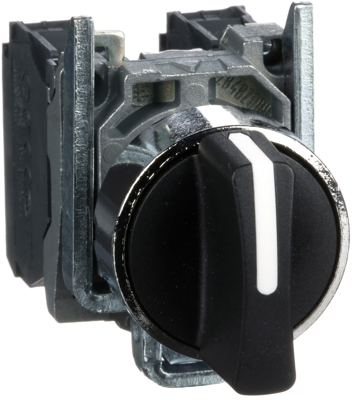

Selector switch, unlit, latching, waistband round, black, front ring silver, 3 x 45°, mounting Ø 22 mm, XB4BD53
Unit Price (€ / pc.)
26.3823 € *
Available: 20 pcs.
Leadtime: 1 Week **
Total Price:
26.38 € *
Price list
Quantity
Price per unit*
1 pcs.
26.3823 €
5 pcs.
25.6683 €
*incl. VAT plus shipping costs
**Subject to prior sale
XB4BD53 from Schneider Electric at Bürklin Elektronik
On our site you will find detailed information about the product XB4BD53 from Schneider Electric.Selector switch, 3-position, 2S, right/left momentary, latching, knob short, black - XB4BD53 from Schneider Electric
Metal control circuit devices, diameter 22mm. The control circuit devices designed for industrial applications combine simple installation with great flexibility and robust design. The robust 3-point mounting with only one screw offers enormous safety and saves installation time.The technical features of XB4BD53 from Schneider Electric at a glance
- Number of NO contacts: 2
- Number of CO contacts: 0
- Number of NC contacts: 0
- Number of switching positions: 3
- Design of the actuating element: short redary handle
- Design of the electrical connection: Screw connection
- Illuminated: No
- Width of the opening: 0 mm
- Colour of the button: black
- Colour of front ring: Chrom
- Height of the opening: 0 mm
- Hole diameter: 22 mm
- With front ring: Yes
- With illuminant: No
- Latching switching function: Yes
- Protection class (IP): IP67
- Groping: Yes
- Material of the front ring: Metal
Technical specifications
| Connection | screw connection | |
| Version | selector switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 3 x 45° | |
| Installation diameter | 22 mm | |
| Installation height | 47 mm | |
| Installation depth | 68 mm | |
| Actuator colour | black | |
| Front ring colour | silver | |
| Contact function | latching | |
| Contact material | silver | |
| Protection class | IP67 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
