XB4BD255 | Schneider Electric

Toggle switch, 2 positions, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, black, front ring metallized, 90°, mounting Ø 22.5 mm, XB4BD255

Order No.: 27L5780
EAN: 3606486341629
MPN:
XB4BD255
Series: Harmony XB4

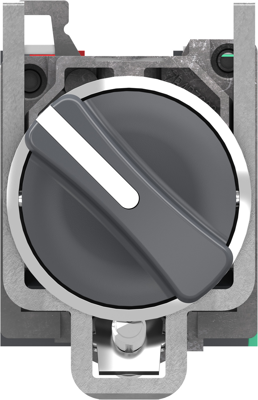

XB4BD255 Schneider Electric Actuators, Signal Elements and Front Elements Image 1

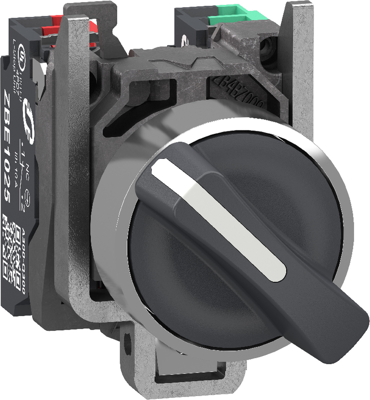

XB4BD255 Schneider Electric Actuators, Signal Elements and Front Elements Image 2

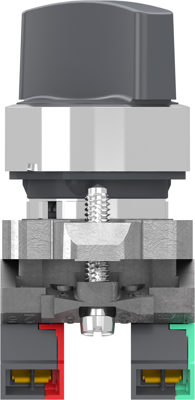

XB4BD255 Schneider Electric Actuators, Signal Elements and Front Elements Image 3

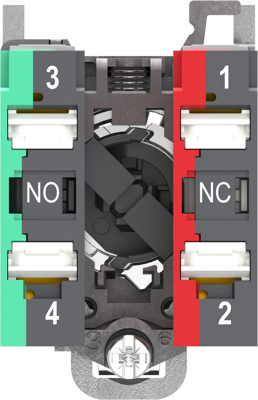

XB4BD255 Schneider Electric Actuators, Signal Elements and Front Elements Image 4

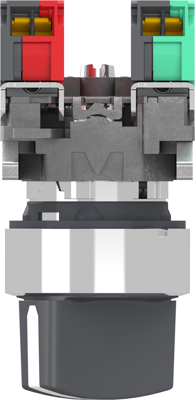

XB4BD255 Schneider Electric Actuators, Signal Elements and Front Elements Image 5
Image may differ
Unit Price (€ / pc.)
24.8829 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
24.88 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8829 €
3 pcs.
23.8000 €
5 pcs.
22.5029 €
10 pcs.
21.3367 €
*incl. VAT plus shipping costs
Subject to prior sale

Selector switch, XB4BD255, Schneider Electric

Selector switch, Harmony XB4, metal, black, 22mm, 2 positions, stay put, 1 NO + 1 NC, compact push in terminals.

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • A wide choice of contact blocks for general purposes or specific applications
  • Excellent mechanical connection with operator head
  • A large set of accessories to customize your panels
Technical specifications
Filter Property Value
Product type toggle switch
can be illuminated No
Front ring colour metallized
Protection class IP66/IP67/IP69/IP69K
Latching switching function 1 Form A (N/O) + 1 Form B (N/C)
Version 2 positions
Rotation angle 90°
Collar shape of the front frame round
Connection push-in
Actuator colour black
Installation diameter 22.5 mm
Contact function latching
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
