XB4BA43225 | Schneider Electric

Pushbutton, labeled O, unlit, groping, 1 Form B (N/C), waistband round, red, front ring metal, mounting Ø 22.5 mm, XB4BA43225

Order No.: 27L5371
EAN: 3606480360732
MPN:
XB4BA43225
Series: Harmony XB4
XB4BA43225 Schneider Electric Actuators, Signal Elements and Front Elements

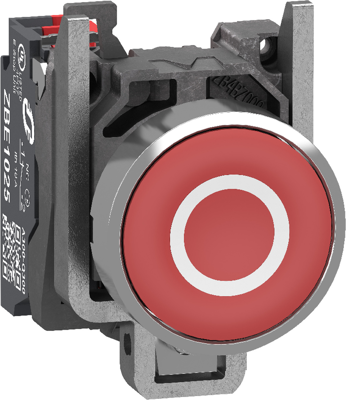

Image may differ
Unit Price (€ / pc.)
15.8270 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
15.83 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8270 €
3 pcs.
15.1249 €
5 pcs.
14.4704 €
10 pcs.
13.6969 €
*incl. VAT plus shipping costs
Subject to prior sale

Push button, XB4BA43225, Schneider Electric

This Harmony XB4 modular red push button operates with a spring return mechanism. It has a chromium-plated metal bezel and is supplied with a red flush cap, marked with O (white). It features 1 NC slow break contact and push-in terminal connections. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This product is made from metal, it weighs 76g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications This product meets many standards, including UL 508, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-5-4 standards, and certifications such as BV, GL, CSA, LROS (Lloyds register of shipping), DNV and UL listed. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
  • Excellent mechanical connection with operator head
Technical specifications
Filter Property Value
Collar shape of the front frame round
Protection class IP66/IP67/IP69/IP69K
Latching switching function 1 Form B (N/C)
Contact function groping
Front ring colour metal
can be illuminated No
Installation depth 43.2 mm
Installation diameter 22.5 mm
Actuator colour red
Connection Push-in terminals
Product type pushbutton
Version labeled O
Contact material silver alloy
Installation height 47 mm
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
