9001KP38R9 | Schneider Electric
Signal light, illuminable, waistband round, red, front ring silver, mounting Ø 30 mm, 9001KP38R9
Unit Price (€ / pc.)
118.2146 € *
Standard delivery time from the manufacturer is: 2 Weeks

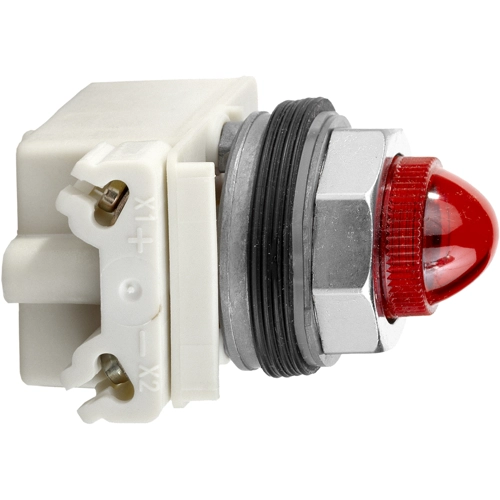

Signal light, 9001KP38R9, Schneider Electric
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30 mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Protection class | IP66 | |
| Installation diameter | 30 mm | |
| Front ring colour | silver | |
| Connection | screw connection | |
| Actuator colour | red | |
| Product type | signal light | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
