9001KP1R9 | Schneider Electric
Signal light, illuminable, waistband round, red, front ring silver, mounting Ø 30 mm, 9001KP1R9
Unit Price (€ / pc.)
156.2589 € *
Standard delivery time from the manufacturer is: 2 Weeks

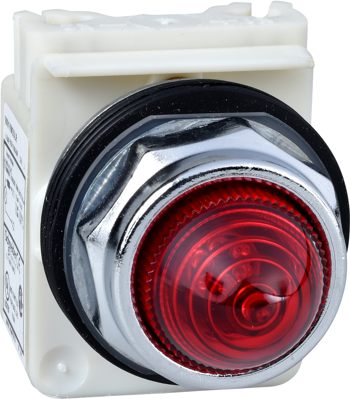

Signal light, 9001KP1R9, Schneider Electric
This single component red pilot light with transformer provides clear visual feedback on the status of your machines. It is supplied with 110 Vac. It is easily installed into a standard 30 mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Protection class | IP66 | |
| Installation diameter | 30 mm | |
| Front ring colour | silver | |
| Connection | screw connection | |
| Actuator colour | red | |
| Product type | signal light | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
