FN281-2-06 | Schaffner

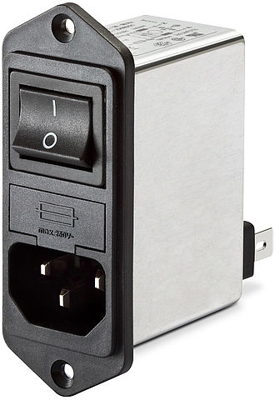

IEC inlet filter C14, 50 to 400 Hz, 2 A, 250 VAC, 2 mH, faston plug 6.3 mm, FN281-2-06
Unit Price (€ / pc.)
40.0554 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
40.06 € *
Price list
Quantity
Price per unit*
1 pcs.
40.0554 €
10 pcs.
35.0574 €
40 pcs.
25.0376 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC inlet filter with toggle switch and fuse holder, type Schaffner FN 280.
For vertical (top and bottom mounting holes), horizontal (left and right mounting holes), or snap-in mounting, double-pole toggle switch and fuse holder with comfortable access for installation of one or two 5 x 20 mm fuses; Capacitance: Cx 220 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.
For vertical screw mounting, type FN 281/FN 282.
FN 281: 1 fuse. FN 282: 2 fuses.
Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance): FN 281-2-06, 2.0/2.4 A, 2.0 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Capacity X|Y | X2 220 nF | |
| Connection | faston plug 6.3 mm | |
| integrated switch | Yes | |
| ohmic resistance | 1 MΩ | |
| With fuse | Yes | |
| Number of phases | 1 | |
| Rated current | 2 A | |
| Inductance per line | 2 mH | |
| Version | IEC inlet filter C14 | |
| max. frequency | 400 Hz | |
| Rated Voltage | 250 VAC | |
| min. operating temperature | -25 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 40 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
