IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 7.5 mH, faston plug 6.3 mm, FN281-1-06

default S
front S
default L
front L
Total price
(22.82 € * / pcs.)
22.82 €
Available: 52 pcs.
Quantity
Price per unit*
1 pcs.
22.82 €
4 pcs.
21.85 €
8 pcs.
20.94 €
20 pcs.
20.12 €
*incl. VAT plus shipping costs
Show 5 variants
Description

Product by Schaffner at Bürklin Elektronik

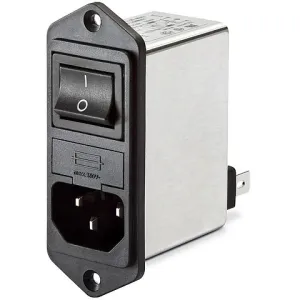

IEC inlet filter with toggle switch and fuse holder, type Schaffner FN 280.

For vertical (top and bottom mounting holes), horizontal (left and right mounting holes), or snap-in mounting, double-pole toggle switch and fuse holder with comfortable access for installation of one or two 5 x 20 mm fuses; Capacitance: Cx 220 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.

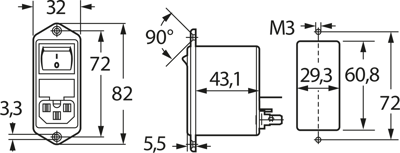

For vertical screw mounting, type FN 281/FN 282.

FN 281: 1 fuse. FN 282: 2 fuses.

Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance): FN 281-1-06, 1.0/1.2 A, 7.5 mH

Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 7.5 mH
integrated switch Yes
Capacity X|Y X2 220 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 1 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 94054990
Original Packaging Carton with 40 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 7.5 mH, faston plug 6.3 mm, FN281-1-06
Order No.:
 71D320
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-1-06
1 pcs.
22.82 €
4 pcs.
21.85 €
8 pcs.
20.94 €
20 pcs.
20.12 €
22.82 € *
Available: 52 pcs.
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 450 µH, faston plug 6.3 mm, FN281-6-06
Order No.:
 71D332
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-6-06
1 pcs.
23.51 €
4 pcs.
22.50 €
8 pcs.
21.59 €
20 pcs.
20.73 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 2 A, 250 VAC, 2 mH, faston plug 6.3 mm, FN281-2-06
Order No.:
 71D324
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-2-06
1 pcs.
23.05 €
4 pcs.
22.06 €
8 pcs.
21.16 €
20 pcs.
20.33 €
23.05 € *
Available: 32 pcs.
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN281-4-06
Order No.:
 71D0392
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-4-06
40 pcs.
22.30 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 340 µH, faston plug 6.3 mm, FN281-10-06
Order No.:
 71D0393
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-10-06
40 pcs.
22.72 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
