FN2070-6-06 | Schaffner
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 7.8 mH, faston plug 6.3 mm, FN2070-6-06
Total price
(25.59 €
* / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
20 pcs.
25.59 €
*incl. VAT plus shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Schaffner at Bürklin Elektronik

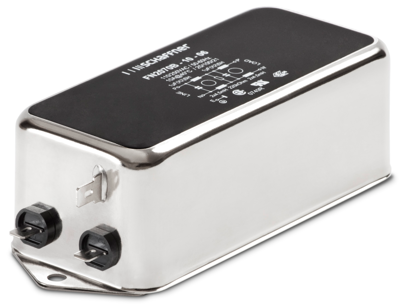

EMC filter, single-phase, type Schaffner FN 2070.
Multistage high-performance filter with very high differential and common mode attenuation and excellent RF attenuation; Leakage current: 0.734 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.

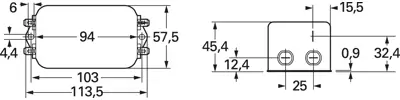

EMC filters, 113.5 mm length, 45.4 mm height, type FN 2070.
Technical attributes (type, rated current at+40 °C, inductance, capacitance Cx/Cy): FN 2070-6-06, 6.0 A, 7.8 mH, 1.0 µF/4.7 nF
Technical specifications
| ohmic resistance | 220000 Ω | |
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| Version | 2-stage filter | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 7.8 mH | |
| integrated switch | No | |
| Capacity X|Y | X2 1 µF, Y2 4.7 nF | |
| max. frequency | 0.0004 MHz | |
| max. operating temperature | 100 °C | |
| min. frequency | 0.00005 MHz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated voltage (DC) | 250 V | |
| Rated current | 6 A |
