2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 2.8 mH, faston plug 6.3 mm, FN2070-16-06

default S
front S
default L
front L
Total price
(61.36 € * / pcs.)
61.36 €
Available: 4 pcs.
Quantity
Price per unit*
1 pcs.
61.36 €
3 pcs.
58.83 €
5 pcs.
56.51 €
10 pcs.
55.06 €
*incl. VAT plus shipping costs
Show 15 variants
Description

Product by Schaffner at Bürklin Elektronik

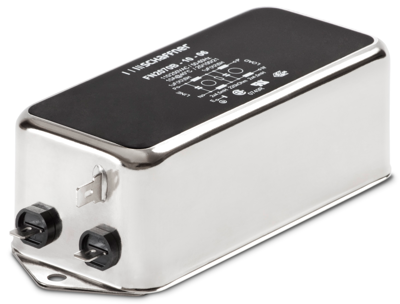

EMC filter, single-phase, type Schaffner FN 2070.

Multistage high-performance filter with very high differential and common mode attenuation and excellent RF attenuation; Leakage current: 0.734 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.

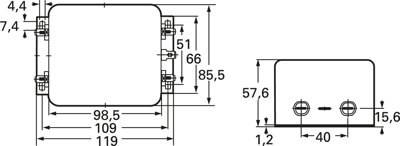

EMC filters, 119 mm length, 57.6 mm height, type FN 2070.

Technical attributes (type, rated current at+40 °C, inductance, capacitance Cx/Cy): FN 2070-16-06, 16 A, 2.8 mH, 1.0 µF/4.7 nF

Technical specifications
ohmic resistance 220000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version 2-stage filter
Rated Voltage 250 VAC
Inductance per line 2.8 mH
integrated switch No
Capacity X|Y X2 1 µF, Y2 4.7 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 16 A
