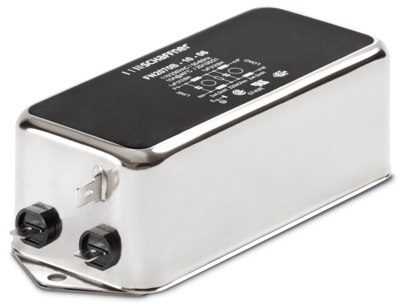

FN2070-3-06 | Schaffner
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 9.8 mH, faston plug 6.3 mm, FN2070-3-06
Unit Price (€ / pc.)
36.4735 € *
Available: 9 pcs.
Total Price:
36.47 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4735 €
5 pcs.
34.2958 €
20 pcs.
32.5465 €
40 pcs.
31.6659 €
160 pcs.
29.9166 €
*incl. VAT plus shipping costs
Subject to prior sale
EMC filter, single-phase, type Schaffner FN 2070.
Multistage high-performance filter with very high differential and common mode attenuation and excellent RF attenuation; Leakage current: 0.734 mA. Operating voltage 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Connection: solderable 6.3 x 0.8 tab terminals. Test logo: UL, CSA, ENEC 14.
EMC filters, 85 mm length, 40.3 mm height, type FN 2070.
Technical attributes (type, rated current at+40 °C, inductance, capacitance Cx/Cy): FN 2070-3-06, 3.0 A, 9.8 mH, 0.47 µF/4.7 nF
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| max. operating temperature | 100 °C | |
| ohmic resistance | 470 kΩ | |
| max. frequency | 400 Hz | |
| With fuse | No | |
| Number of phases | 1 | |
| min. operating temperature | -25 °C | |
| Version | 2-stage filter | |
| Rated voltage (DC) | 250 V | |
| min. frequency | 50 Hz | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| Capacity X|Y | X2 470 nF, Y2 4.7 nF | |
| integrated switch | No | |
| Inductance per line | 9.8 mH |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 20 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
