FN2070-25-08 | Schaffner

2-stage filter, 50 to 400 Hz, 25 A, 250 V (DC), 250 VAC, 2 mH, threaded bolt M4, FN2070-25-08

Order No.: 71D0153
EAN: 7612774459897
MPN:
FN2070-25-08
801263
Series: FN2070

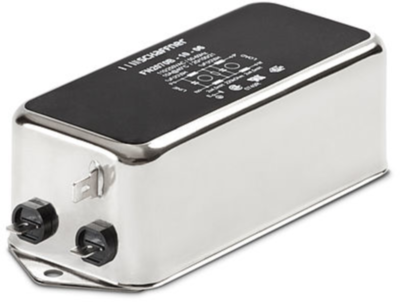

FN2070-25-08 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
87.7625 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
877.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
87.7625 €

Two-stage filter, FN2070-25-08, SCHAFFNER

Multi-stage performance AC/DC EMI filter

Features

  • High differential and common-mode attenuation
  • High frequency attenuation
  • Rated currents from 1 to 36 A
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Building automation
  • Industrial application
  • Machinery
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
  • Single Phase Motor Drive
Technical specifications
Rated voltage (DC) 250 V
max. frequency 400 Hz
Number of phases 1
integrated switch No
Rated current 25 A
Inductance per line 2 mH
Capacity X|Y X2 2.2 µF, Y2 4.7 nF
With fuse No
Version 2-stage filter
min. operating temperature -25 °C
Connection threaded bolt M4
Rated Voltage 250 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 220 kΩ
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
