102131 | Riegler

Glycerine pressure gauge, 102131, Riegler

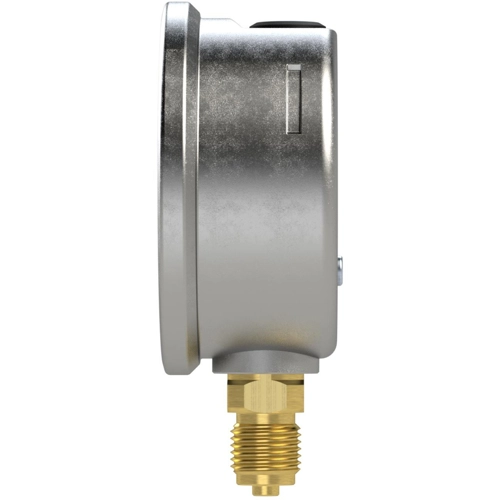

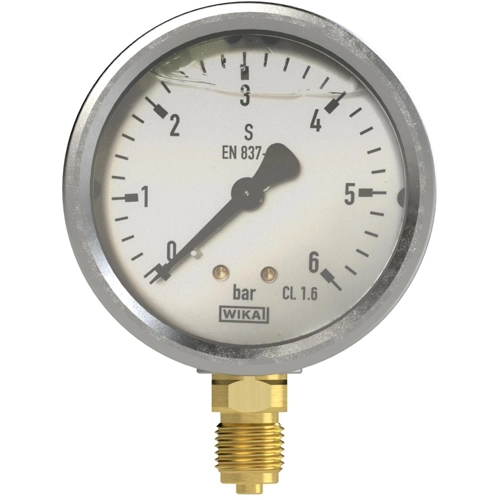

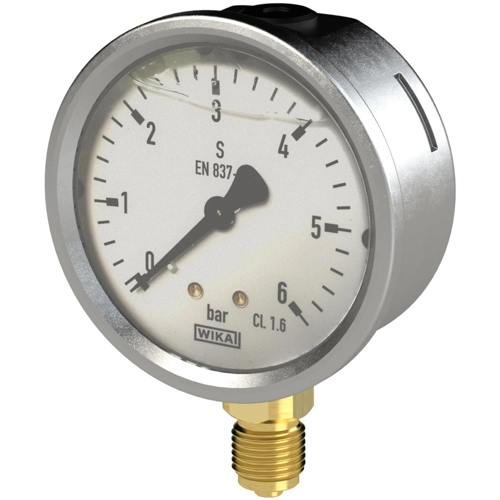

The liquid-filled Bourdon tube pressure gauge is constructed with a case made of stainless steel and wetted parts made of copper alloy. The 102131 meets the requirements of the international industry standard EN 837-1 for Bourdon tube pressure gauges. Due to the liquid filling in the case, the pressure element and movement are efficiently damped. Therefore, this instrument is particularly suited to a measuring point with a high dynamic load, such as a fast load cycle or vibration. The case of the 102131 is available in a nominal size of 100 mm and fulfils IP65 ingress protection. With an accuracy of up to class 1.0, this pressure gauge is suitable for a wide range of industrial applications. For mounting in a control panel, the pressure gauge with a back mount process connection can be fitted with a mounting flange or with a triangular bezel and mounting bracket.

Features

• Vibration and shock-resistant
• Especially robust design
• Type approval for the shipbuilding industry

Applications

• For measuring points with high dynamic pressure loads and vibrations
• For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
• Hydraulics
• Compressors, shipbuilding
