RS-2415D | RECOM

DC converter, 18-36 VDC, 2 W, 2 outputs, ±15 VDC, 83 % efficiency, RS-2415D

Order No.: 33C586
EAN: 4099891335533
MPN:
RS-2415D
10002820
Series: RS-S_D(Z)

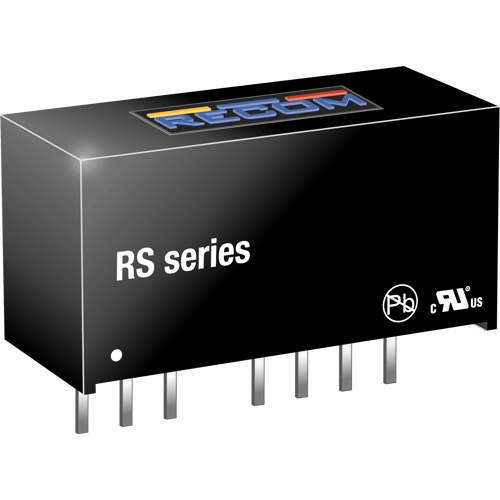

RS-2415D RECOM DC/DC Converters Image 1
RS-2415D RECOM DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
20.2657 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
445.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
22 pcs.
20.2657 €

DC/DC converters, 2.0 W, type Recom RS.

2.0 W DC/DC converter; 2 : 1 extended-range input, in SIP8 package. Insulation voltage: 1.0 kV. Output voltage tolerance: ±2.0 %. Residual ripple: 50 mVpp. Insulation resistance: 1.0 Gohm. Operating temperatures: –40 to +85 °C.

Technical attributes (type, input voltage range, rated input voltage, number of outputs, output voltage, output current, efficiency): RS-2415D, 18 to 36 V, 24 V, 2 x OUT, ±15 V, ±67 mA, 83 %

Technical specifications
Filter Property Value
Number of outputs 2
Output current 67 mA
Output voltage DC ±15 VDC
Input voltage AC 18-36 VDC
Power 2 W
efficiency 83 %
Design SIP8
Isolation voltage 1 kV
Length 21.8 mm
Width 9.2 mm
Height 11.1 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 22 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
