RS-2405S | RECOM
DC converter, 18-36 VDC, 2 W, 1 output, 5 VDC, 78 % efficiency, RS-2405S
Order No.: 33C582
EAN: 4099891335526
MPN:
RS-2405S
10000722
Unit Price (€ / pc.)
21.8722 € *
Standard delivery time from the manufacturer is: 6 Weeks

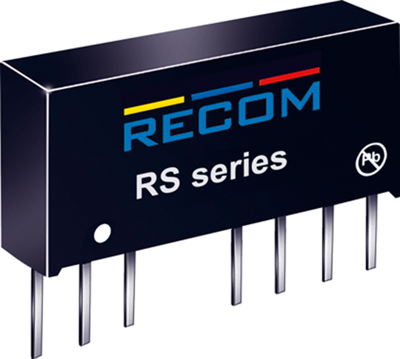

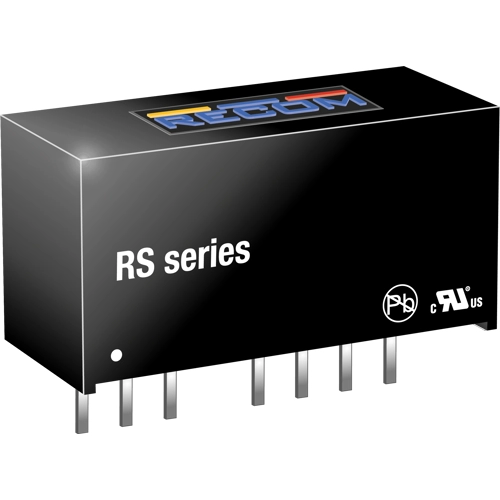

DC/DC converters, 2.0 W, type Recom RS.
2.0 W DC/DC converter; 2 : 1 extended-range input, in SIP8 package. Insulation voltage: 1.0 kV. Output voltage tolerance: ±2.0 %. Residual ripple: 50 mVpp. Insulation resistance: 1.0 Gohm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, rated input voltage, number of outputs, output voltage, output current, efficiency): RS-2405S, 18 to 36 V, 24 V, 1 x OUT, 5.0 V, 400 mA, 78%
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 400 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 2 W | |
| efficiency | 78 % | |
| Design | SIP8 | |
| Isolation voltage | 1 kV | |
| Length | 21.8 mm | |
| Width | 9.2 mm | |
| Height | 11.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
