RPMVH24-0.5-R | RECOM

DC/DC Converter, RPMVH24-0.5-R, RECOM

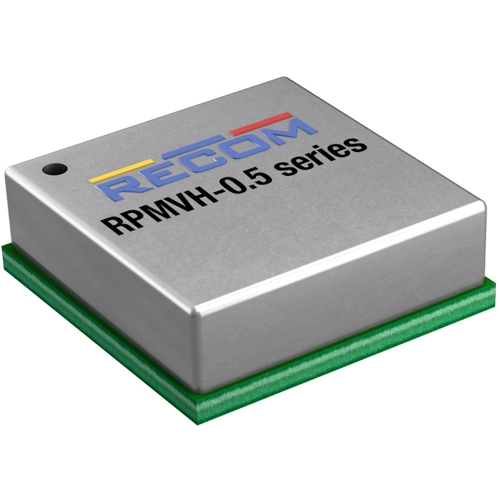

The RPMVH24-0.5-R is a wide input voltage, 0.5 A non-isolated switching regulator power module. The module accepts up to 115 VDC input and provides a trimmable output from 2.6 V up to 28 VDC and comes complete with a full set of features including adjustable output, sequencing, on/off control, and power-good signals. The ultra-compact module has a profile of only 3.75 mm, but with an efficiency of up to 90%, the device can operate at full load in ambient temperatures as high as +100°C and with power derating up to 120°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

Features

• Non isolated power module
• High power density
• Efficiency up to 90%, no need for heat-sink
• 6-sided shielding
• DOSA compatible footprint
• Low profile
