ROF-78K24-0.5SMD-R | RECOM
DC converter, 28-36 V, 12 W, 1 output, 24 VDC, 95 % efficiency, ROF-78K24-0.5SMD-R
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 14 Weeks

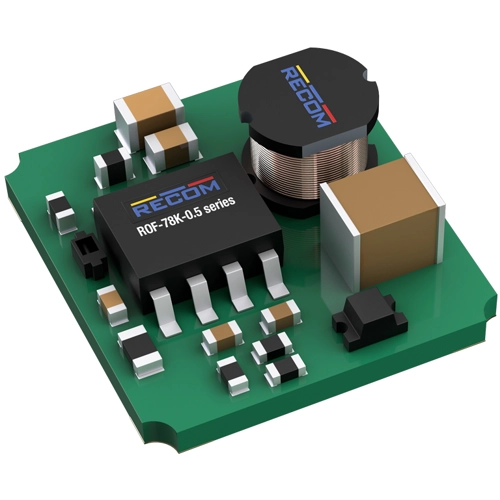

DC/DC Converter, ROF-78K24-0.5SMD-R, RECOM
The ROF-78K24-0.5SMD-R is a switching regulator with high efficiency and a low profile, pin-less SMD package. This module can be SMD reflow soldered. The connection pads have corner half-vias to enable optical inspection of the joints after soldering.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 28-36 V | |
| Power | 12 W | |
| efficiency | 95 % | |
| Length | 12.5 mm | |
| Width | 13.5 mm | |
| Height | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
