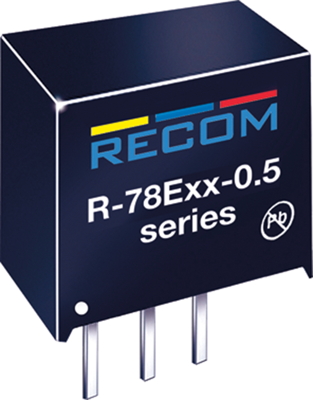

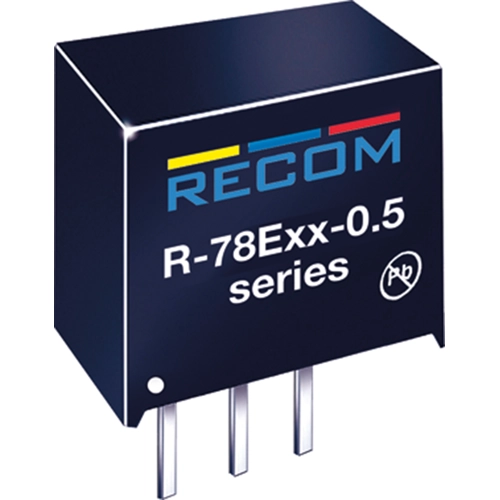

R-78E5.0-0.5 | RECOM
DC converter, 7-28 VDC, 3 W, 1 output, 5 VDC, 82 % efficiency, R-78E5.0-0.5
Unit Price (€ / pc.)
5.3907 € *
Available: 136 pcs.
Total Price:
5.39 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3907 €
10 pcs.
4.7481 €
84 pcs.
4.2126 €
336 pcs.
3.9389 €
1008 pcs.
3.7485 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, type Recom R-78E.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: ±3.0 %. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-78E5.0-0.5, 7.0 to 28 V, 5.0 V, 0.5 A, 82/92 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 7-28 VDC | |
| Power | 3 W | |
| efficiency | 82 % | |
| Design | SIP3 | |
| Length | 11.6 mm | |
| Width | 8.5 mm | |
| Height | 10.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Bar with 42 pieces |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
