5070102034 | Raychem

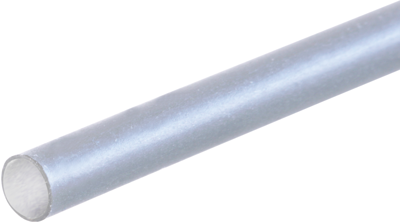

Heatshrink tubing, 2:1, (25.4/12.7 mm), polyolefine, cross-linked, transparent

Order No.: 35P3060
EAN: 4099891273149
MPN:
5070102034
RNF-100-1-X-STK
Series: RNF-100
Raychem
default L
Image may differ
Unit Price (€ / pc.)
8.6870 € *
Available: 0 pcs.
Next delivery: 70 pcs. on 2024-08-09
Leadtime: On Request **
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6870 €
10 pcs.
8.1396 €
50 pcs.
7.5922 €
100 pcs.
7.0567 €
*incl. VAT plus shipping costs
**Subject to prior sale

RNF-100 Heat-shrinkable Tubing

Features

  • 2:1 shrink ratio
  • Excellent physical, chemical, and electrical properties that meet or exceed industrial and military standards for highly reliable, general purpose tubing
  • Flexible
  • Flame-retardant

Applications

  • Designed to provide superior mechanical, thermal, and fluid-resistance performance in demanding enviroments.
  • Widely used to provide insulation and strain relief of wire terminations and connections.
  • Used for jacketing wire bundles and light-duty harnesses where superior abrasion resistance is a plus.
Technical specifications
Colour transparent
Inner diameter after shrinkage 12.7 mm
Inner diameter before shrinkage 25.4 mm
contains glue inside No
Length 1.2 m
Material polyolefine, cross-linked
max. operating temperature 135 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Shrinking temperature 95 °C
Wall thickness 0.89 mm
Inch Size 1
Logistics
Country of origin IT
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
