5053092090 | Raychem

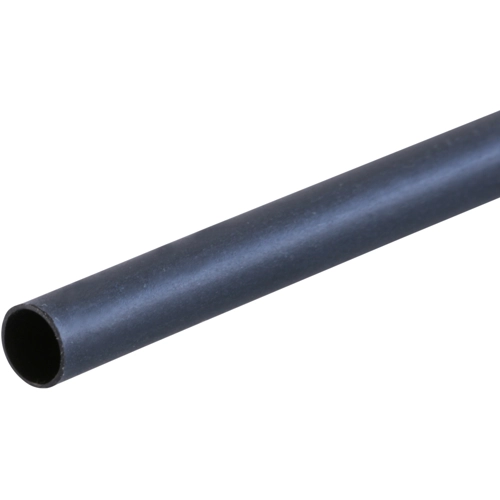

Heatshrink tubing, 2:1, (6.4/3.2 mm), polyolefine, cross-linked, black

Order No.: 35P2983
EAN: 4099891272555
Series: RNF-100
default L
Image may differ
Unit Price (€ / pc.)
1.4756 € *
Available: 0 pcs.
Available in 5 Days: 2,050 pcs.
Leadtime: 1 Week **
Total Price:
1.48 € *
Price list
Price per unit*
60 pcs.
1.4756 €
360 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale

RNF-100 Heat-shrinkable Tubing


  • 2:1 shrink ratio
  • Excellent physical, chemical, and electrical properties that meet or exceed industrial and military standards for highly reliable, general purpose tubing
  • Flexible
  • Flame-retardant


  • Designed to provide superior mechanical, thermal, and fluid-resistance performance in demanding enviroments.
  • Widely used to provide insulation and strain relief of wire terminations and connections.
  • Used for jacketing wire bundles and light-duty harnesses where superior abrasion resistance is a plus.
Technical specifications
Colour black
Inner diameter after shrinkage 3.2 mm
Inner diameter before shrinkage 6.4 mm
contains glue inside No
Length 1.2 m
Material polyolefine, cross-linked
max. operating temperature 135 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Shrinking temperature 95 °C
Wall thickness 0.64 mm
Inch Size 1/4
Country of origin PL
Customs tariff number 39173200
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
