5053302020 | Raychem

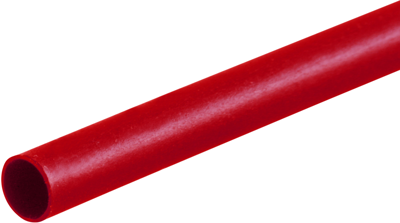

Heatshrink tubing, 2:1, (25.4/12.7 mm), polyolefine, cross-linked, red
Unit Price (€ / mtr.)
7.5208 € *
Available: 0 mtr.
Available in 5 Days: 180 mtr.
Leadtime: 1 Week **
Total Price:
7.52 € *
Price list
Quantity
Price per unit*
18 mtr.
7.5208 €
66 mtr.
6.2237 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, QSZH-125-NR1-50MM, Raychem
QSZH-125-NR1-50MM is a zero halogen, dual wall heatshrinkable tubing designed to provide environmental sealing, mechanical and electrical protection of in-line splices in an automotive environment.
Features
- Excellent environmental sealing
- Quick installation
- Zero halogen
- Inspectable after installation
- Small cross-sectional profile
- RoHS/ELV compliant
Technical specifications
Colour | red | |
Inner diameter after shrinkage | 12.7 mm | |
Inner diameter before shrinkage | 25.4 mm | |
contains glue inside | No | |
Length | 1.2 m | |
Material | polyolefine, cross-linked | |
max. operating temperature | 135 °C | |
min. operating temperature | -55 °C | |
Shrinking rate | 2:1 | |
Shrinking temperature | 95 °C | |
Wall thickness | 0.89 mm | |
Inch Size | 1 |
Download
Logistics
Country of origin | GB |
Customs tariff number | 39269097 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
