3664884001 | Raychem

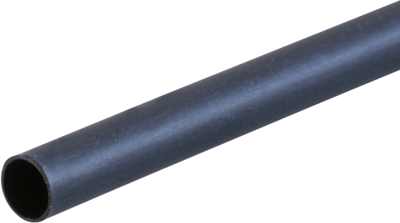

Heatshrink tubing, 2:1, (9.5/4.8 mm), PE, crosslinked, black, 3664884001
Unit Price (€ / mtr.)
1.9159 € *
Standard delivery time from the manufacturer is: 12 Weeks
Heat shrink tubing, DCPT-12/6-45-SP, Raychem
DCPT-12/6-45-SP is a flexible, flame-retardant, dual-color, polyolefin tubing. Also used to identify “ground” on wires and in cables, and to jacket and insulate light-duty harnesses.
Features
- 2:1 and 3:1 Shrink ratio
- Flame-retardance
- Flexibility: able to conform to irregular shapes
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contains glue inside | No | |
| Inner diameter before shrinkage | 9.5 mm | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Colour | black | |
| Inner diameter after shrinkage | 4.8 mm | |
| Material | PE, crosslinked | |
| Wall thickness | 0.64 mm | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Inch Size | 3/8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
