1.30.290.021/2500 | RAFI

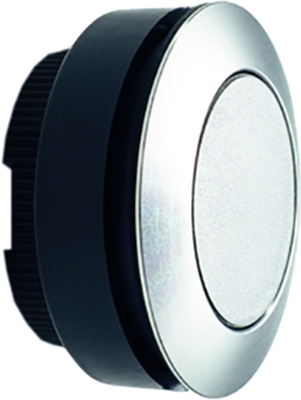

Name: Pushbutton, illuminable, groping, waistband round, silver, front ring silver, mounting Ø 30.5 mm, 1.30.290.021/2500
Brand: RAFI
SKU: 12G9761
Price: 13.97 EUR
Availability: InStock

Pushbutton, illuminable, groping, waistband round, silver, front ring silver, mounting Ø 30.5 mm, 1.30.290.021/2500

Order No.: 12G9761

EAN: 4099889252323

MPN:

1.30.290.021/2500

Series: RAFIX 30 FS+

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated Yes

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.9706 € *

Available: 4 pcs.

Leadtime: 8 Weeks **

Total Price:

13.97 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Befehlsgeräte Serie RAFIX 30 FS+ 1.30.

Extra flache Blenden, genießt alle Vorzüge der Befehlsgerätebaureihe 22FS+; Befestigung: mit Gewindering + Adapter, Einbauöffnung: 30,5 mm, Schutzart frontseitig: IP 65, Betriebstemperatur: –25 bis +70 °C, Anschluss: Printanschluss mit Verdrehschutz, Öffner-Kontakte: zwangstrennend nach IEC 947-5-1, geeignet für die aufgeführten Betätigungstasten, Schaltelemente und Lampenfassungen der Reihe FS, die frei kombinierbar sind, minimales Rastermaß von 35 x 35 mm, Goldkontakte ab 5,0 V, Silberkontake bis 250 V, mit Kurzhub-Betätigung (Schaltweg 0,5 mm), variabel in der Beleuchtung, kompatibel mit 3,0 mm THT-LEDs/SMT-LEDs oder LED-Clip.

Drucktaster Serie RAFIX 30 FS+ Typ RAFI 1.30.

Frontring aus Edelstahl; Bundform: rund. Tabellenangaben: Typ, Kontaktfunktion, Blendenfarbe

Beleuchtbar Typ RAFIX 30 FS+.

Type: 1.30.290.021/2500, tastend, transluzent grün

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring + adapter
	can be illuminated	Yes
	Collar shape of the front frame	round
	Installation diameter	30.5 mm
	Installation height	3.45 mm
	Installation depth	15.7 mm
	Actuator colour	silver
	Front ring colour	silver
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Product Change Notification - DE Product Change Notification

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
