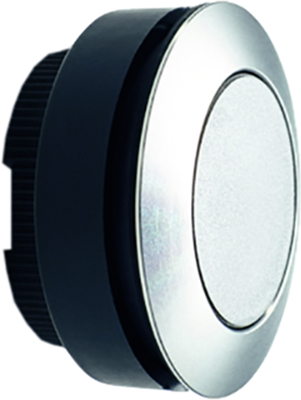

1.30.290.021/0100 | RAFI

Name: Pushbutton, unlit, groping, waistband round, silver, front ring silver, mounting Ø 30.5 mm, 1.30.290.021/0100
Brand: RAFI
SKU: 12G9763
Price: 13.97 EUR
Availability: OutOfStock

Pushbutton, unlit, groping, waistband round, silver, front ring silver, mounting Ø 30.5 mm, 1.30.290.021/0100

Order No.: 12G9763

EAN: 4099889252347

MPN:

1.30.290.021/0100

Series: RAFIX 30 FS+

Image may differ

Key Specification:

Version pushbutton

Contact function groping

Collar shape of the front frame round

can be illuminated No

Show 12 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.9706 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

13.97 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pushbutton series RAFIX 30 FS+, type RAFI 1.30

Type: 1.30.290.021/0100

Form of lens; flush

Color of lens: opaque black

Front ring: staninless steel

Form of collar: round

Dimensions of collar: 34.5 mm

Mounting hole: 30.3 mm

Mounting: threaded ring + Adapter

Contact function: momentary

Illuminability: no

Degree of Protection from front side: IP 65

Technical specifications

	Version	pushbutton
	Type of mounting	threaded ring + adapter
	can be illuminated	No
	Collar shape of the front frame	round
	Installation diameter	30.5 mm
	Installation height	3.45 mm
	Installation depth	15.7 mm
	Actuator colour	silver
	Front ring colour	silver
	Contact function	groping
	Protection class	IP65

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Product Change Notification - DE Product Change Notification

Logistics

Country of origin	HU
Customs tariff number	85365080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
