ML70.100 | PULS

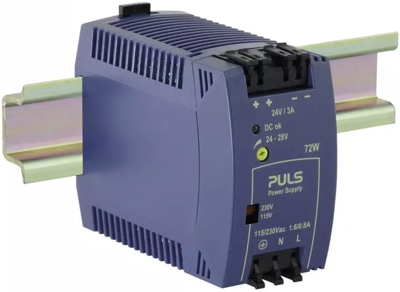

Power supply, 24 to 28 VDC, 3 A, 72 W, ML70.100
Unit Price (€ / pc.)
119.6902 € *
Standard delivery time from the manufacturer is: On Request
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 3.0 A output current, type ML70.100.
Supports parallel and series mode; Input voltage: 100 to 120/200 to 240 VAC (-15/+10 %), 260 to 300 VDC (-15/+25 %). Output ripple: 50 mVpp. Connections: spring force. MTBF: 2038 kh. Additional certifications: cUL. Dimensions: W 45, H 75, D 91 mm. Weight: 260 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML70.100, 24 V, 72 W, 47/48 ms, 90.6/91.5 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 75 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 3 A | |
| Width | 45 mm | |
| efficiency | 89 % | |
| Number of outputs | 1 | |
| Input voltage AC | 100-120 VAC, 220-240 VAC, 290 VDC | |
| Power | 72 W | |
| Output voltage DC | 24 to 28 VDC | |
| Depth | 91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
