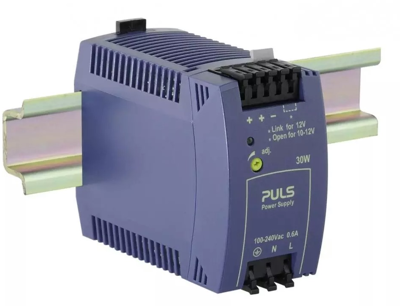

ML30.102 | PULS
Power supply, 10 to 12 VDC, 3 A, 30 W, ML30.102
Unit Price (€ / pc.)
122.9984 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
123.00 € *
Price list
Quantity
Price per unit*
1 pcs.
122.9984 €
3 pcs.
119.3094 €
10 pcs.
115.2158 €
25 pcs.
112.1337 €
100 pcs.
107.2190 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 2.5 A output current, type ML30.102.
Supports parallel and series mode; Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 10 mVpp. Connections: spring force. MTBF: 2507 kh. Additional certifications: cUL. Dimensions: W 45, H 75, D 91 mm. Weight: 250 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML30.102, 10 to 12 V, 30 W, 46/200 ms, 82.6/84 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 10 to 12 VDC | |
| Output current | 3 A | |
| Width | 45 mm | |
| Input voltage AC | 100-240 VAC, 110-300 VDC | |
| Height | 75 mm | |
| Power | 30 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 91 mm | |
| efficiency | 84 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
