ML30.241 | PULS

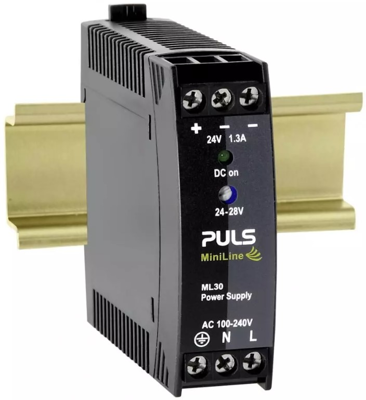

Power supply, 24 VDC, 1.3 A, 30 W, ML30.241
Product by PULS at Bürklin Elektronik
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 1.3 A output current, type ML30.241.
Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. Connections: screw terminals. MTBF: 2405 kh. Additional certifications: UL, GL. Dimensions: W 22.5, H 75, D 91 mm. Weight: 140 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML30.241, 24 V, 30 W, 31/141 ms, 88.5/89.4 %
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 1.3 A | |
| Width | 22.5 mm | |
| Input voltage AC | 100-240 VAC, 88-375 VDC | |
| Height | 75 mm | |
| Power | 30 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 91 mm | |
| efficiency | 89 % |
| Country of origin | CN |
| Customs tariff number | 85043180 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
