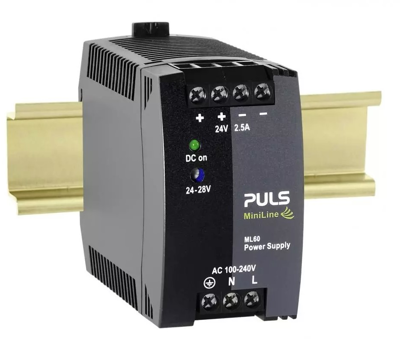

ML60.241 | PULS
Power supply, 24 to 28 VDC, 2.5 A, 60 W, ML60.241
Unit Price (€ / pc.)
100.6740 € *
Available: 10 pcs.
Total Price:
100.67 € *
Price list
Quantity
Price per unit*
1 pcs.
100.6740 €
5 pcs.
94.6288 €
15 pcs.
91.0112 €
50 pcs.
86.9771 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, output current 2.5 A, type ML60.241.
Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. Connections: screw terminals. MTBF: 1916 kh. Additional certifications: cUL, GL, CE. Dimensions: W 45, H 75, D 91 mm. Weight: 250 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML60.241, 24 V, 60 W, 24/107 ms, 87.8/89.7 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 91 mm | |
| Height | 75 mm | |
| efficiency | 89.7 % | |
| Output current | 2.5 A | |
| Width | 45 mm | |
| Number of outputs | 1 | |
| Power | 60 W | |
| Degree of protection (IP) | IP20 | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
