ML60.121 | PULS

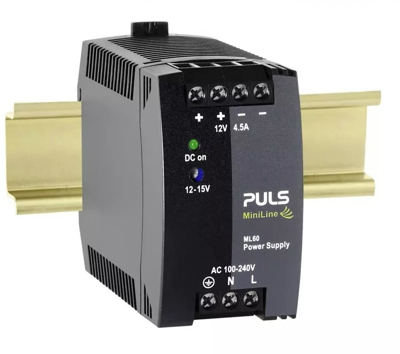

Power supply, 12 to 15 VDC, 4.5 A, 54 W, ML60.121
Unit Price (€ / pc.)
79.4087 € *
Standard delivery time from the manufacturer is: On Request
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 4.5 A output current, type ML60.121.
Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. Connections: screw terminals. MTBF: 1916 kh. Additional certifications: cUL, GL, CE. Dimensions: W 45, H 75, D 91 mm. Weight: 250 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML60.121, 12 V, 54 W, 25/113 ms, 85.3/87.2 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 4.5 A | |
| Output voltage DC | 12 to 15 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC | |
| Power | 54 W | |
| efficiency | 87.2 % | |
| Degree of protection (IP) | IP20 | |
| Width | 45 mm | |
| Height | 75 mm | |
| Depth | 91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
