ML50.100 | PULS

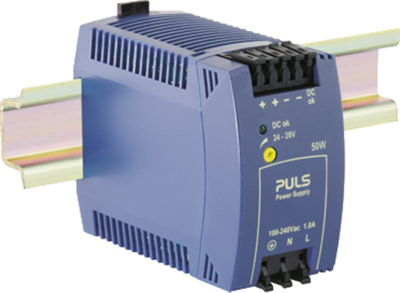

Power supply, 24 to 28 VDC, 2.1 A, 50 W, ML50.100
Discontinued
Unit Price (€ / pc.)
120.8802 € *
Available: 5 pcs.
Total Price:
120.88 € *
Price list
Quantity
Price per unit*
1 pcs.
120.8802 €
3 pcs.
117.2507 €
10 pcs.
113.2166 €
25 pcs.
110.2059 €
100 pcs.
105.3626 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 2.1 A output current, type ML50.100.
Supports parallel and series mode; Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. Connections: spring force. MTBF: 2613 kh. Additional certifications: cUL. Dimensions: W 45, H 75, D 91 mm. Weight: 240 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML50.100, 24 V, 50 W, 40/180 ms, 88.4/89 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2.1 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC | |
| Power | 50 W | |
| efficiency | 89 % | |
| Degree of protection (IP) | IP20 | |
| Width | 45 mm | |
| Height | 75 mm | |
| Depth | 91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
