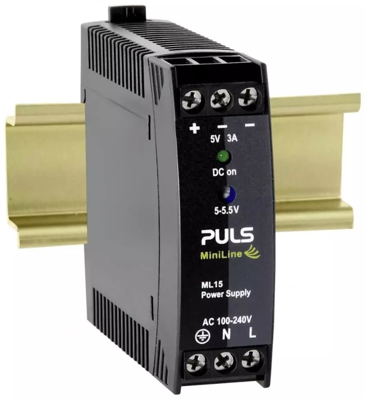

ML15.051 | PULS
Power supply, 5 to 5.5 VDC, 3 A, 15 W, ML15.051
Unit Price (€ / pc.)
59.381 € *
Available: 23 pcs.
Total Price:
59.38 € *
Price list
Quantity
Price per unit*
1 pcs.
59.381 €
10 pcs.
53.431 €
30 pcs.
48.076 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type PULS MiniLine.
In robust plastic housing; Operating temperatures: –10 to +70 °C. Certifications: CE, UL, IEC 60950-1.
Single-phase, 3.0 A output current, type ML15.051.
Supports parallel and series mode; Input voltage: 100 to 240 VAC (-15/+10 %), 110 to 300 VDC (-20/+25 %). Output ripple: 50 mVpp. Connections: screw terminals. MTBF: 2686 kh. Additional certifications: CSA. Dimensions: W 22.5, H 75, D 91 mm. Weight: 130 g.
Technical attributes (type, output voltage, output power, backup time 120/230 VAC, efficiency 120/230 VAC): ML15.051, 5.0 V, 15 W, 45/186 ms, 76.8/77.2 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3 A | |
| Output voltage DC | 5 to 5.5 VDC | |
| Input voltage AC | 100-240 VAC, 110-300 VDC | |
| Power | 15 W | |
| efficiency | 77.2 % | |
| Degree of protection (IP) | IP20 | |
| Width | 23 mm | |
| Height | 75 mm | |
| Depth | 91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
