PISA-M-404 | PULS
Circuit breaker, electronic, 1 pole, 16 A, 24 V (DC), push-in, DIN rail, IP20, PISA-M-404
NCNR (non cancelable / non returnable)

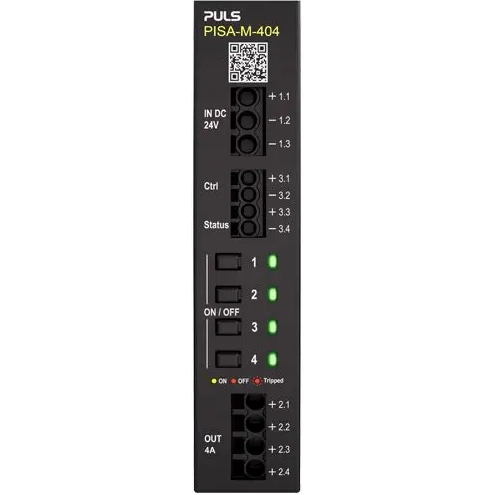

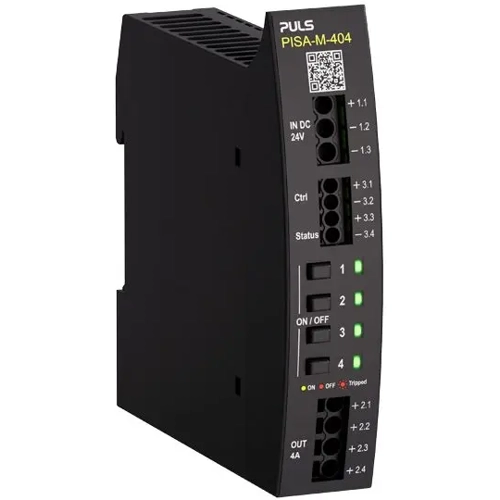

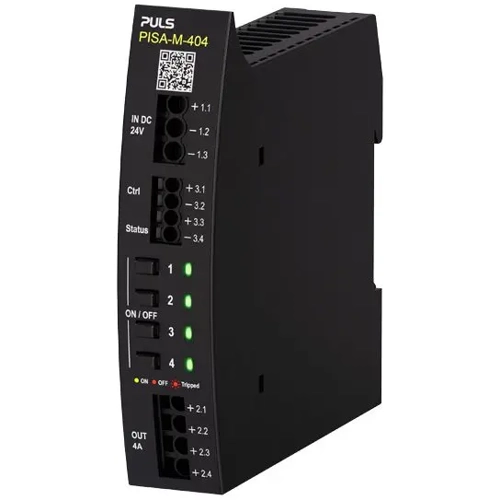

Electronic circuit breaker, PISA-M-404, PULS
The PISA-M-404 device is a miniature 4-channel protection module for 24 V system, providing all the benefits of an electronic circuit breaker in a tiny DIN rail-mountable housing: Fully adjustable current tripping setpoints for four independent output channels in one device - including selection of tripping characteristics combined with different options for remote signaling and communication, enabling remote configuration, monitoring, and control. supports multiple, user-selectable, signaling and communication methods, allowing the selection of simple alerts and a reset function. device is equipped with push-in terminals, which are optimized for automated wiring and allow fast and safe installation.
Features
- Four current controlled outputs
- Fully adjustable and fixed output current versions
- Selective tripping of overloaded channels
- Compatible even with large capacitive loads
- Protection function in case of PSU overload
- Local control and reset via push buttons
- Configurable signaling and communication interface
- ON/OFF feature for each individual output
- Easy wiring via push-in terminals
| Filter | Property | Value |
|---|---|---|
| Product type | circuit breaker | |
| Version | electronic | |
| Pin number | 1 pole | |
| Rated current | 16 A | |
| Rated voltage (DC) | 24 V | |
| Connection | push-in | |
| Type of mounting | DIN rail | |
| Actuator | push button | |
| Degree of protection (IP) | IP20 |
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85363010 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
