5-1393144-7 | Potter & Brumfield
Relay, 2 Form C (NO/NC), 24 V (DC), 650 Ω, 15 A, 120 V (AC), monostable, 5-1393144-7
Order No.: 29G9346
MPN:
5-1393144-7
Unit Price (€ / pc.)
19.5636 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
19.56 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5636 €
10 pcs.
18.2308 €
25 pcs.
17.0765 €
50 pcs.
16.0531 €
*incl. VAT plus shipping costs
Subject to prior sale

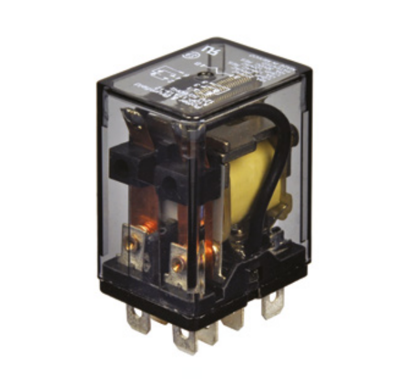

Power Relay, 5-1393144-7, Potter & Brumfield
General Purpose Power Relay, DC, Monostable, 2 Form C DPDT-CO, 15 A Contact Rating, 24 VDC Coil Voltage, Potter & Brumfield K10.
Technical specifications
| Connection | faston plug | |
| Coil voltage (DC) | 24 V | |
| switching current | 15 A | |
| Coil type | monostable | |
| Contact material | AgCdO | |
| Contact type | 2 Form C (NO/NC) | |
| Switching Voltage (AC) | 120 V | |
| Coil resistance | 650 Ω |
Download
Logistics
| Customs tariff number | 85364190 |
| Country of origin | CN |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
