1-1393250-9 | Potter & Brumfield
Circuit breaker, thermal, 1 pole, 0.25 A, 32 V (DC), 250 V (AC), faston plug 6.35 mm, snap-in, 1-1393250-9
Order No.: 82P3415
MPN:
1-1393250-9
Unit Price (€ / pc.)
14.7203 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
14.72 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7203 €
10 pcs.
13.6612 €
25 pcs.
12.7568 €
50 pcs.
11.5906 €
*incl. VAT plus shipping costs
Subject to prior sale

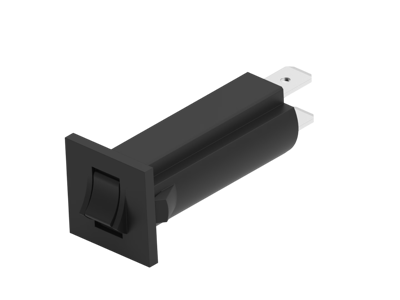

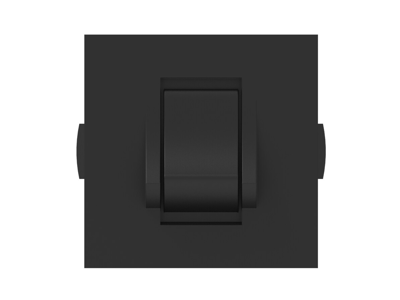

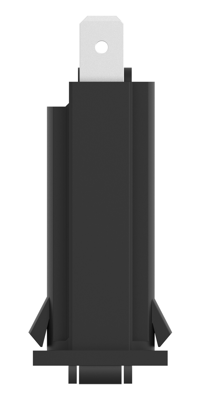

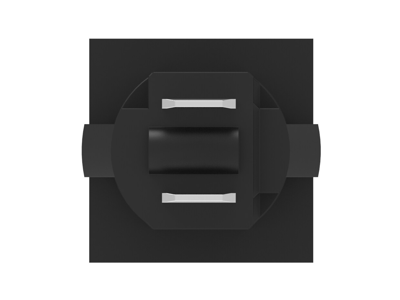

Circuit breaker, 1-1393250-9, Potter & Brumfield
Thermal Circuit Breaker, Series Trip, Black Actuator, 250 VAC, 32 VDC, .25 A, 1 Pole, 4.5 - 28 seconds Trip Time at 200%, Potter and Brumfield W28.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator | push actuator | |
| Rated current | 0.25 A | |
| Rated voltage (AC) | 250 V | |
| Version | thermal | |
| Connection | faston plug 6.35 mm | |
| Rated voltage (DC) | 32 V | |
| Type of mounting | snap-in | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
