3245024 | Phoenix Contact
N-disconnect terminal, screw connection, 0.14-6.0 mm², 32 A, 4 kV, blue, 3245024
Unit Price (€ / pc.)
3.8437 € *
Available in 5 Days: 2,201 pcs. - if ordered today
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.5343 €
50 pcs.
3.2130 €
100 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale

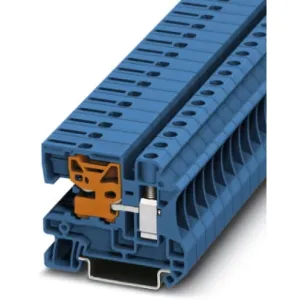

N disconnect terminal block, 3245024, Phoenix Contact
N disconnect terminal block, Assembly instruction: In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. The corresponding support brackets can be found at phoenixcontact.net/products, for neutral conductor disconnection, rated voltage: 250 V, nominal current: 32 A, Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- Same shape as UT standard terminal blocks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 55 mm | |
| Height | 47.5 mm | |
| Version | N-disconnect terminal | |
| Degree of soiling | 3 | |
| Connection | screw connection | |
| AWG cross-section | AWG 26 to 10 | |
| Rated surge voltage | 4 kV | |
| Cable cross-section | 0.14-6.0 mm² | |
| Rated Voltage | 250 V | |
| Width | 6.2 mm | |
| Number of terminals | 1 | |
| Colour | blue | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
