3244632 | Phoenix Contact

Bolt terminal, bolt connection, 25-300 mm², 1 pole, 520 A, 8 kV, blue, 3244632

Order No.: 60P4014
EAN: 4046356724487
MPN:
3244632
RBO 16 BU
Series: RBO

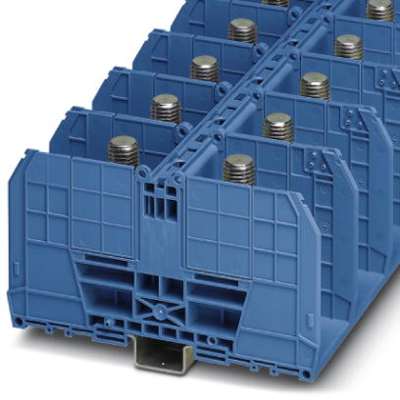

3244632 Phoenix Contact Series Terminals Image 1

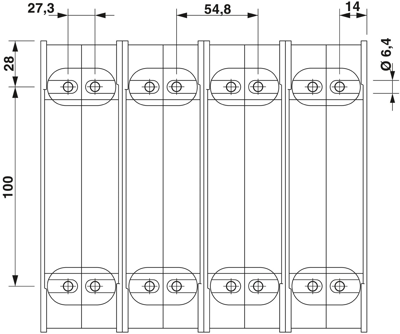

3244632 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
34.0697 € *
Available in 10 days: 5 pcs. - if ordered today
Total Price:
34.07 € *
Price list
Quantity
Price per unit*
1 pcs.
34.0697 €
10 pcs.
31.6778 €
25 pcs.
29.1431 €
50 pcs.
26.5251 €
*incl. VAT plus shipping costs
Subject to prior sale

Bolt connection terminal block, 3244632, Phoenix Contact

Bolt connection terminal block, rated voltage: 1000 V, nominal current: 520 A, connection method: Bolt connection, 1 level, Rated cross section: 300 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Tested for railway applications
Technical specifications
Version Bolt terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 25-300 mm²
AWG cross-section AWG 4
Rated surge voltage 8 kV
Rated current 520 A
Rated Voltage 1000 V
Degree of soiling 3
Length 164 mm
Width 54.8 mm
Height 91.8 mm
Connection bolt connection
Colour blue
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
