3213607 | Phoenix Contact

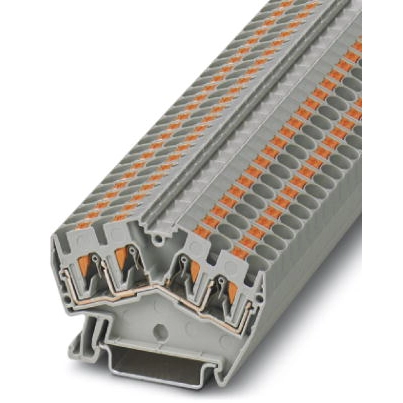

Through terminal block, push-in connection, 0.2-6.0 mm², 4 pole, 32 A, 8 kV, gray, 3213607

Order No.: 60P3643
EAN: 4055626084886
MPN:
3213607
PTS 4-QUATTRO
Series: PTS
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
2.5466 € *
Available: 47 pcs.
Leadtime: On Request **
Total Price:
2.55 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5466 €
10 pcs.
2.2967 €
100 pcs.
1.9516 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feed-through terminal block, 3213607, Phoenix Contact

Feed-through terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, 1 level, Rated cross section: 4 mm², cross section: 0.2 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • 2, 3, and 4-conductor terminal blocks with the same shape
  • Ground terminal blocks of the same shape are available
  • The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
  • Angled conductor entry for use in flat terminal boxes
  • Large space saving when used in concealed wiring systems
Technical specifications
Connection push-in connection
Number of terminals 4
Version through terminal block
AWG cross-section AWG 24 to 10
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.2 mm
Colour gray
Height 43 mm
Length 62.4 mm
Cable cross-section 0.2-6.0 mm²
Rated current 32 A
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
