3212413 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.14-1.5 mm², 4 pole, 6 kV, yellow/green, 3212413
Unit Price (€ / pc.)
4.8909 € *
Available: 0 pcs.
Available in 10 days: 62 pcs.
Leadtime: 2 Weeks **
Total Price:
4.89 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8909 €
10 pcs.
4.5101 €
50 pcs.
4.0936 €
100 pcs.
3.6890 €
*incl. VAT plus shipping costs
**Subject to prior sale

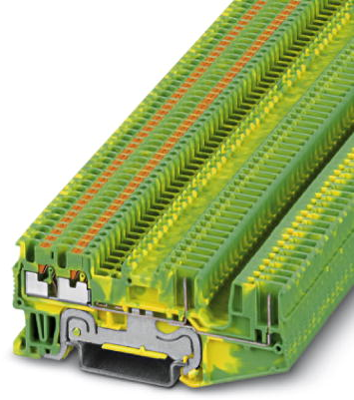

Ground modular terminal block, 3212413, Phoenix Contact
Ground modular terminal block, connection method: Push-in / plug connection, 1 level, cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
- Tested for railway applications
Technical specifications
| Colour | yellow/green | |
| AWG cross-section | AWG 26 to 14 | |
| Width | 3.5 mm | |
| Height | 32 mm | |
| Length | 78.5 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Number of terminals | 4 | |
| Pin number | 4 pole | |
| Version | protective conductor terminal | |
| Connection | push-in connection | |
| Degree of soiling | 3 | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
