3208333 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.14-1.5 mm², 4 pole, 6 kV, yellow/green, 3208333

Order No.: 60P2445
EAN: 4046356564304
MPN:
3208333
PT 1,5/S-QUATTRO-PE
Series: PT
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
4.4268 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
3.9865 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

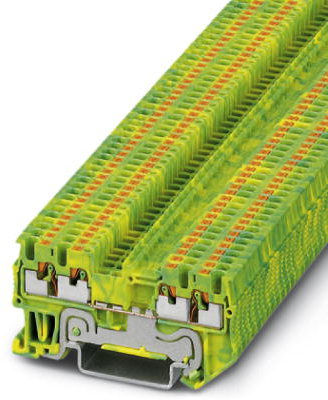

Ground modular terminal block, 3208333, Phoenix Contact

Ground modular terminal block, number of connections: 4, connection method: Push-in connection, 1 level, cross section: 0.14 mm²  - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
  • All terminal blocks provide an additional test connection
Technical specifications
Connection push-in connection
Number of terminals 4
Version protective conductor terminal
AWG cross-section AWG 26 to 14
Rated surge voltage 6 kV
Width 3.5 mm
Colour yellow/green
Height 32 mm
Length 63.2 mm
Cable cross-section 0.14-1.5 mm²
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
