3211911 | Phoenix Contact
Disconnect terminal, push-in connection, 0.2-6.0 mm², 28 A, 6 kV, blue, 3211911
Unit Price (€ / pc.)
5.1527 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7362 €
50 pcs.
4.3078 €
100 pcs.
3.8794 €
*incl. VAT plus shipping costs
Subject to prior sale

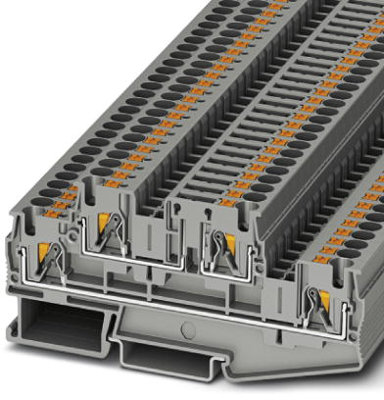

Disconnect terminal block, 3211911, Phoenix Contact
Disconnect terminal block, Current and voltage are determined by the plug used., rated voltage: 500 V, nominal current: 28 A, 1 level, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², 2nd level, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Features
- The compact design and front connection enable wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- All terminal blocks provide an additional test connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Version | disconnect terminal | |
| Rated current | 28 A | |
| Rated surge voltage | 6 kV | |
| Colour | blue | |
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Degree of soiling | 3 | |
| Cable cross-section | 0.2-6.0 mm² | |
| Length | 102.9 mm | |
| AWG cross-section | AWG 24 to 10 | |
| Height | 47.4 mm | |
| Width | 6.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
