3210567 | Phoenix Contact

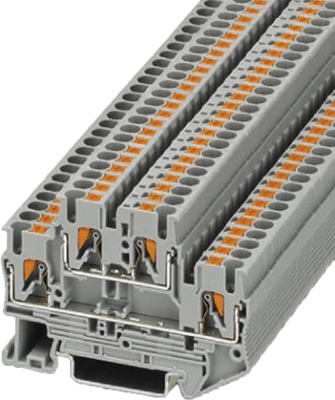

Double level terminal, push-in connection, 0.14-4.0 mm², 4 pole, 22 A, 6 kV, gray, 3210567

Order No.: 09H8810
EAN: 4046356418980
MPN:
3210567
PITTB 2,5
Series: PITTB
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
1.7969 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7969 €

Terminal blocks for TS 35 mounting rails, type Phoenix Contact CLIPLINE complete.

Uniform accessories for all wiring technologies. The terminal blocks of the CLIPLINE system can be combined as required. push-in terminal technology PIT for direct insertion of solid and flexible conductors with wire end ferrule as of 0.34 mm². Screw terminal technology UT for wiring multiple conductors and maximum contact forces. Cage clamp technology ST for vibration-sensitive applications. Quick terminating technology QT for reducing wiring times up to 60 %, as the conductor does not have to be stripped. The marked terminal blocks are approved for applications in potentially explosive areas; Insulation material: polyamide 6.6. Inflammability class UL 94 V-0.

Double-deck terminals, type PITTB.

Rated current: 22 A. Rated voltage: 500 V. Rated surge voltage: 6.0 kV. Dimensions: L 68, W 5.2, H 47.5 mm.

Type: PITTB 2.5, 2 x 2–wire, gray

Technical specifications
Connection push-in connection
Number of terminals 4
Version double level terminal
AWG cross-section AWG 26 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 45.8 mm
Length 68 mm
Cable cross-section 0.14-4.0 mm²
Rated current 22 A
Pin number 4 pole
Degree of soiling 2
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
