3210538 | Phoenix Contact

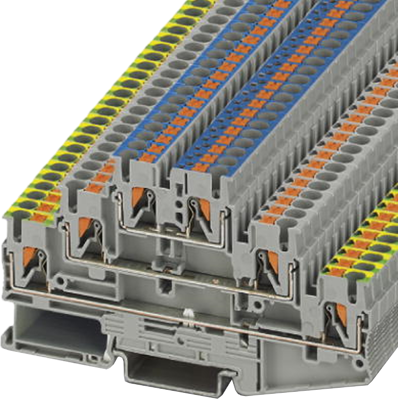

Protective conductor terminal, push-in connection, 0.14-4.0 mm², 6 pole, 20 A, 6 kV, gray, 3210538

Order No.: 09H8823
EAN: 4046356422611
MPN:
3210538
PIT 2,5-PE/L/N
Series: PIT
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
4.4387 € *
Available: 40 pcs.
Leadtime: 2 Weeks **
Total Price:
4.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.4387 €

Terminal blocks for TS 35 mounting rails, type Phoenix Contact CLIPLINE complete.

Uniform accessories for all wiring technologies. The terminal blocks of the CLIPLINE system can be combined as required. push-in terminal technology PIT for direct insertion of solid and flexible conductors with wire end ferrule as of 0.34 mm². Screw terminal technology UT for wiring multiple conductors and maximum contact forces. Cage clamp technology ST for vibration-sensitive applications. Quick terminating technology QT for reducing wiring times up to 60 %, as the conductor does not have to be stripped. The marked terminal blocks are approved for applications in potentially explosive areas; Insulation material: polyamide 6.6. Inflammability class UL 94 V-0.

PE/L/N terminals, type PIT.

Type: PIT 2.5–PE/L/N, 3 x 2–wire, gray

Technical specifications
Connection push-in connection
Number of terminals 6
Version protective conductor terminal
AWG cross-section AWG 26 to 12
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 58 mm
Length 102 mm
Cable cross-section 0.14-4.0 mm²
Rated current 20 A
Pin number 6 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
