3210266 | Phoenix Contact

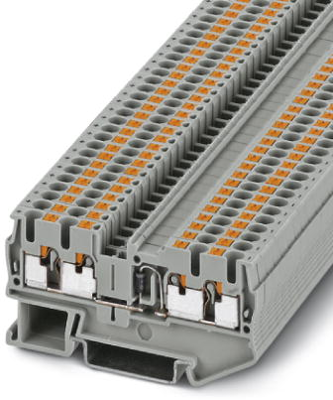

Component terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 500 mA, 8 kV, gray, 3210266

Order No.: 60P2534
EAN: 4046356335874
MPN:
3210266
PT 2,5-QUATTRO-DIO/L-R
Series: PT
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
3.4748 € *
Available: 21 pcs.
Leadtime: On Request **
Total Price:
3.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.4748 €

Component terminal block, 3210266, Phoenix Contact

Component terminal block, The maximum current is determined by the diode. Installed: Diode 1N 4007, Reverse voltage: 1300 V, maximum continuous current: 0.5 A, with integrated 1N4007 diode, Nominal voltage: 800 V, Nominal current: 0.5 A, Connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², Cross section: 0.14 mm² - 4 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray

Features

  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Technical specifications
Connection push-in connection
Number of terminals 4
Version Component terminal block
AWG cross-section AWG 26 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.2 mm
Colour gray
Height 36.5 mm
Length 72 mm
Cable cross-section 0.14-4.0 mm²
Rated current 500 mA
Pin number 4 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
