3208746 | Phoenix Contact

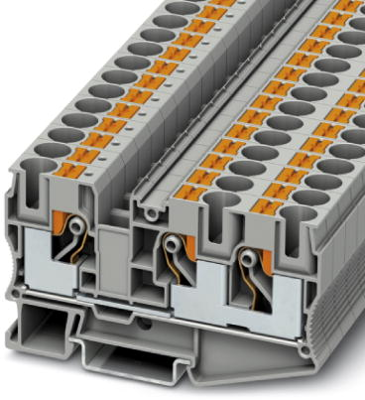

Through terminal block, push-in connection, 0.5-16 mm², 3 pole, 57 A, 8 kV, gray, 3208746

Order No.: 60P2478
EAN: 4046356643610
MPN:
3208746
PT 10-TWIN
Series: PT
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
4.3197 € *
Available: 30 pcs.
Leadtime: On Request **
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.8794 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feed-through terminal block, 3208746, Phoenix Contact

Feed-through terminal block, Nominal voltage: 1000 V, Nominal current: 57 A, Connection method: Push-in connection, Rated cross section: 10 mm², Cross section: 0.5 mm² - 16 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray

Features

  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
Technical specifications
Connection push-in connection
Number of terminals 3
Version through terminal block
AWG cross-section AWG 20 to 6
Rated Voltage 1000 V
Rated surge voltage 8 kV
Width 10.2 mm
Colour gray
Height 49.5 mm
Length 88.9 mm
Cable cross-section 0.5-16 mm²
Rated current 57 A
Pin number 3 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Colour
Cable cross-section
Version
Rated Voltage
Width
Length
Pin number
Height
Connection
AWG cross-section
Rated current
Number of terminals

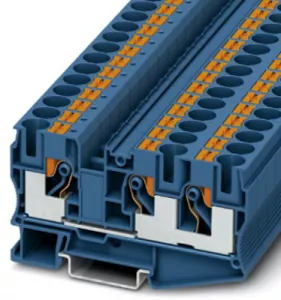

1 item in 2 variations
