3070354 | Phoenix Contact
Through terminal block, screw connection, 0.5-16 mm², 2 pole, 57 A, 8 kV, gray, 3070354
Unit Price (€ / pc.)
5.1289 € *
Available: 0 pcs.
Available in 10 days: 350 pcs.
Leadtime: 2 Weeks **

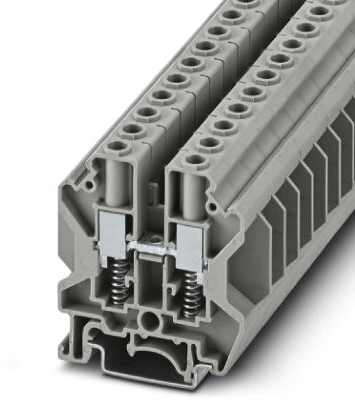

Feed-through terminal block, 3070354, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 57 A, connection method: Screw connection with spring support, 1 level, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features
- Large-surface labeling option for every terminal point
- Universal foot for mounting on NS 32 and NS 35 DIN rails
- The ISSBI isolator bridge bars support switchable cross connections with IS, here the screw has the function of a live contact
- The USST modular terminal blocks were specifically developed for use in the field of power supply
Technical specifications
| Version | through terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-16 mm² | |
| AWG cross-section | AWG 20 to 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 57 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 52 mm | |
| Width | 10.2 mm | |
| Height | 57.3 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
