3070331 | Phoenix Contact
Through terminal block, screw connection, 0.2-10 mm², 2 pole, 41 A, 8 kV, gray, 3070331
Order No.: 60P5585
EAN: 4046356861229
MPN:
3070331
USSTD 6/SP
Unit Price (€ / pc.)
7.5922 € *
Available: 0 pcs.
Leadtime: On Request **

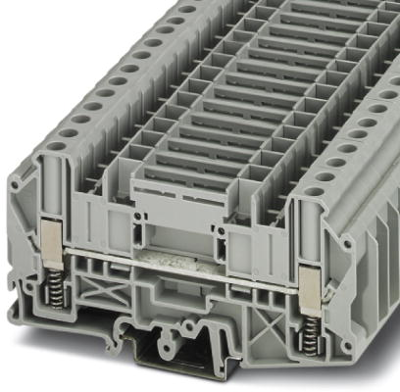

Feed-through terminal block, 3070331, Phoenix Contact
Feed-through terminal block, with spring support, rated voltage: 1000 V, nominal current: 41 A, connection method: Screw connection with spring support, 1 level, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 24 to 8 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 8.2 mm | |
| Colour | gray | |
| Height | 53 mm | |
| Length | 105.2 mm | |
| Cable cross-section | 0.2-10 mm² | |
| Rated current | 41 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
